Product Details:

Place of Origin: guangzhou
Brand Name: crystal
Certification: ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS
Model Number: LK25-45

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden box
Delivery Time: 5-10 days
Payment Terms: TT L/C
Supply Ability: 1000 sets
Get Best Price Contact Now

Detail Information

Product Name: Cycloid Hydraulic Motor Max. Displacement: 400ml/r
Max. Torque: 1000N.m Speed Range: 0-1500r/min
Size: 400mm*400mm*400mm Max. Pressure: 20MPa
Rated Displacement: 400ml/r Displacement Range: 25-400ml/r
High Light:

ISO9001 Cycloid Hydraulic Motor

,

Cycloid Hydraulic Motor Low Noise

,

Powerful Heavy Duty Hydraulic Motor

Product Description

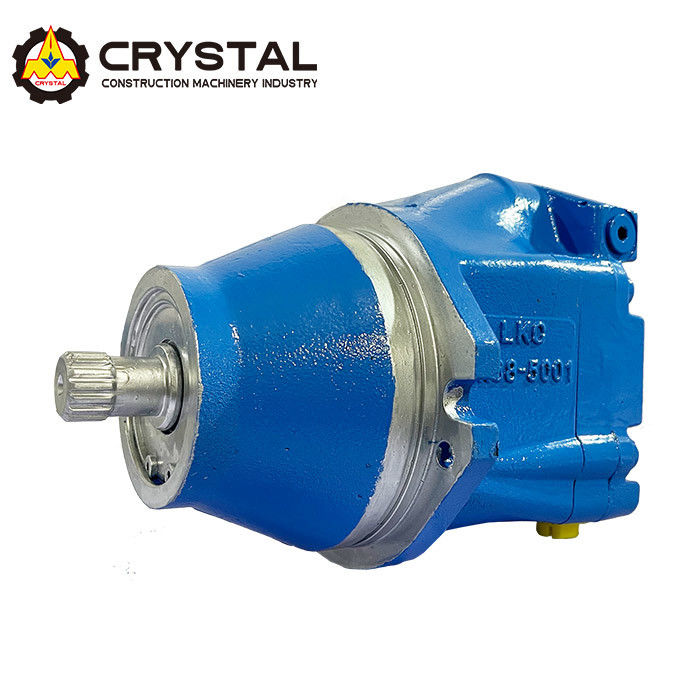

Aerial Work Truck Hydraulic Motor Aerial Platform Equipment

Product Description:



LK series swashplate variable displacement piston motors are designed for aerial platform equipment, hydraulicunderground driling equipment, photovoltaic cleaning equipment, Logistic intelligent operation platform



Features:



1: Ulra high pressure, high speed.

2: The valid range of swash plate angle is 5°-18°, Ensure low-speed mode is more powerful and the higis more agile.

3: Cartridge mounting design, small size, light weight, compact installation space.

4: Based on the hydrostatic theory to optimize key parts, ensure the motor high efficiency, stable operation and low noise.

5: The introduction of new high-pressure heavy-duty friction pair matching materials.

6: Wide design margin of key parts, long-life bearing and international seal standard, make sure the motor high reliabilityand long life.

Technical Parameters:


Model
Maximum displacement
(cc/rev)
Minimum displacement
(cc/rev)
Direction of rotation Maximum output speed(rpm) Maximum working pressure
(bar)
Maximum displacement up Minimum displacement down
LK25 25
Adjustable
according to demand

two-way
3950                         5000                       40
LK30 30 4150                         5150                       40
LK38 38 4000                         5200                       40
LK45 45 3900                         5050                        40

Drawing:powerful Heavy Duty Cycloid Hydraulic Motor Low Noise ISO9001 0

Modle:


del
LK25 LK30 LK38 LK45
A 90 90 90 90
B 135 135 135 135
C 126.7 126.7 126.7 126.7
D 83 83 83 83
E 116 116 116 116
F 155 155 155 155
G 2X14 2X14 2X14 2X14
H 1-1/16-12UNF 1-1/16-12UNF 1-1/16-12UNF 1-1/16-12UNF
J 3/4-16UNF 3/4-16UNF 3/4-16UNF 3/4-16UNF
K 9/16-18 9/16-18 9/16-18 9/16-18
L 9/16-20 9/16-20 9/16-20 9/16-20

Applications:

powerful Heavy Duty Cycloid Hydraulic Motor Low Noise ISO9001 1

Crystal cycloid hydraulic motor is an ideal traction motor for aerial work vehicle. It is certified by ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS, with minimum order quantity of 1 set. It can provide rated torque up to 1000N.m and max. speed up to 1500r/min, max. displacement up to 400ml/r. The weight of the motor is only 20kg, and it is packaged with wooden box. The delivery time is usually 5-10 days, and the payment term can be TT or L/C. The supply ability is up to 1000 sets.

The motor is reliable and efficient, with low noise and vibration. It is widely used in many application scenarios, such as port machinery, wind power, tunneling, engineering machinery, aerial work vehicle, etc. The price of cycloid hydraulic motor is negotiable.

Support and Services:

Cycloid Hydraulic Motor Technical Support and Service

At Cycloid, we understand that the hydraulic motor is an essential component for your operations. That's why we strive to offer the best technical support and service for our customers.

Our team of experienced technicians is available to help you troubleshoot any issues you may encounter when using Cycloid Hydraulic Motors. We also provide ongoing maintenance and repair services to ensure your hydraulic motor is running at peak performance.

In addition to our technical support and service, we provide a variety of resources to help you get the most out of your Cycloid Hydraulic Motor. Our online library includes technical manuals, product specifications, and installation guides.

If you have any questions about our technical support and services, please don't hesitate to contact us. We look forward to helping you get the most out of your Cycloid Hydraulic Motor.



Packing and Shipping:

The Cycloid Hydraulic Motor should be packaged and shipped according to the following guidelines:

  • The motor should be placed in a box lined with protective foam.
  • The box should be sealed with strong tape to secure the motor.
  • The box should be labeled clearly with the customer's name and address.
  • The box should be placed in a larger shipping container with sufficient padding to protect the motor during transit.
