Excavator Cycloid Hydraulic Motor High Speed Hydraulic Traction Motor

Excavator Cycloid Hydraulic Motor High Speed Hydraulic Traction Motor

Product Details:

Place of Origin: guangzhou
Brand Name: crystal
Certification: ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS
Model Number: OMER

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden box
Delivery Time: 5-10 days
Payment Terms: TT L/C
Supply Ability: 1000 sets
Get Best Price Contact Now

Detail Information

Rated Speed: 1500r/min Displacement Range: 25-400ml/r
Product Name: Cycloid Hydraulic Motor Max. Displacement: 400ml/r
Weight: 100kg Speed Range: 0-1500r/min
Rated Torque: 1000N.m Max. Torque: 1000N.m
High Light:

Excavator Cycloid Hydraulic Motor

,

Cycloid Hydraulic Motor High Speed

,

High Speed Hydraulic Traction Motor

Product Description

OMER hydraulik motorTG TF TL series moteur hydraulique Cycloid Hydraulic Motor

Product Description:

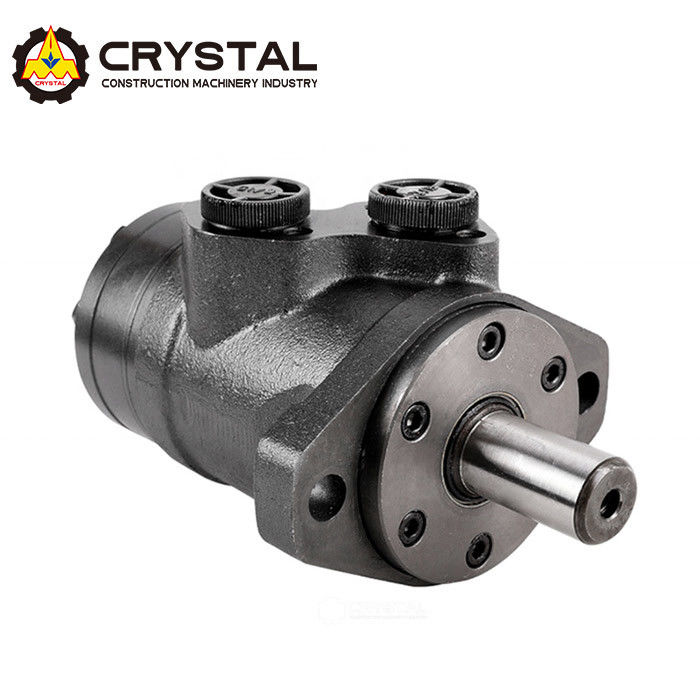

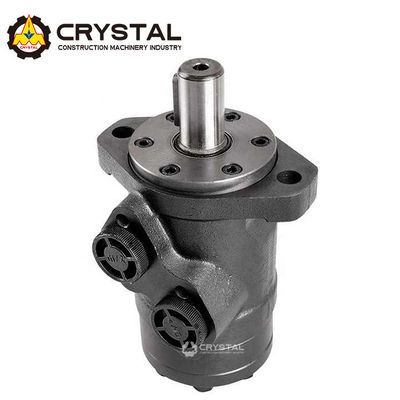

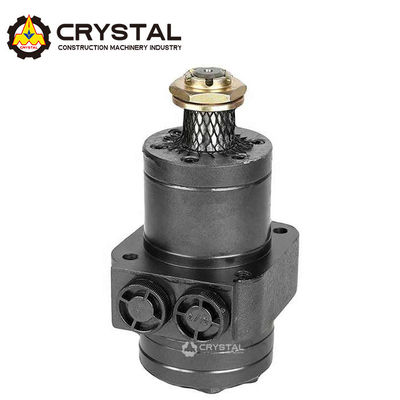

Cycloid Hydraulic Motor

The Cycloid Hydraulic Motor is a type of traction motor, commonly used in drive motors for automotive and industrial applications. It offers a maximum torque of 1000N.m, a torque range of 10-1000N.m, and a rated displacement of 400ml/r. Moreover, its pressure range is 2.5-20MPa. This hydraulic motor is highly efficient and reliable, and is widely used in industrial applications due to its low noise and high torque output. It is also equipped with advanced technology for improved traction and displacement. This motor is an ideal choice for applications that require reliable performance and high torque output.



Features:

1. Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency. 2. The output shaft adapts in needle roller bearings that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications. 3. Advanced design in high speed distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation. 4. Lowest leakage rate, most accurate timing methods. Commutator rotates 6x faster than shaft speed. It make the distribution in a high precision reduces life-cycle cost, maintain high volume efficiencies and can run very smoothly at low speed, gear box not required.



Technical Parameters:

OMER Series
Type
125/160
200/230
250/300
350/375
400/475
540
650
750
Geometric displacement
(cm²/rev.)
118/156
196/228
257/296
345/371
405/462
540
647
745
Max.speed
(rpm)
cont.
360/375
330/290
290/250
220/200
185/160
140
115
100
int.
490/470
425/365
350/315
270/240
220/195
170
138
120
Max.torque
(N*m)
cont.
325/450
530/625
700/810
905/990
1010/1085
980
1015
1050
int.
380/525
600/710
790/930
1035/1140
1180
1240
1250
1180
Max.output (kw)
cont.
12/15
15.5/16
17.5/18
17.5/16.5
15.5/14.5
11.5
10
8
int.
14/17.5
18/19
20/21
20/19
18/16.5
15
12
10
Max.pressure drop (MPa)
cont.
20.5
20.5
20.5
20.5
19/17.5
14
12
10.5
int.
24
24
24
24
22.5/19
17.5
15.5
12
Max.flow
(L/min)
cont.
45/60
70
75/80
80/75
75
75
75
75
int.
60/75
85
90/95
95/90
90
90
90
90


Applications:

Crystal Cycloid Hydraulic Motor, from Guangzhou, is certified by ISO9001/EN ISO 12100/OHSAS 18001/SGS, and minimun order quantity is 1. This product has maximum torque of 1000N.m and maximum displacement of 400ml/r. It has wide torque range of 10-1000N.m, pressure range of 16MPa and speed range of 0-1500r/min. Packaging of this motor is wooden box, delivery time is 5-10 days, payment terms is TT L/C and supply ability is 1000 sets. Price is negotiable.



Customization:

Cycloid Hydraulic Motor

Brand Name: Crystal

Place of Origin: Guangzhou

Certification: ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Wooden box

Delivery Time: 5-10 days

Payment Terms: TT/L/C

Supply Ability: 1000 sets

Rated Torque: 1000N.m

Max. Speed: 1500r/min

Rated Pressure: 16MPa

Displacement Range: 25-400ml/r

Max. Displacement: 400ml/r

Special Feature: Suitable for aerial work vehicle, travel motor, drive motor etc.



Support and Services:

Cycloid Hydraulic Motor Technical Support and Service

At Cycloid, we understand that customer satisfaction is essential. That’s why we offer up-to-date technical support and service to ensure that our customers are always getting the best from their Cycloid Hydraulic Motor products.

Our technical support team has an extensive knowledge of our products, and can offer advice and assistance in installation, maintenance and repair. We have a range of support packages to suit everyone, from a comprehensive 24/7 service to more basic packages. We can also provide customised support solutions tailored to your individual needs.

We also offer regular maintenance and repair services, with technicians available to visit your premises and carry out repairs and maintenance. Our technicians can provide advice on the best way to use and maintain your motor, as well as helping you to identify and rectify any potential problems.

We are committed to providing superior customer service. Our team is available to answer any questions you may have about our products, and we are always willing to go the extra mile to ensure that our customers are happy and satisfied.



Packing and Shipping:

Packaging and Shipping for Cycloid Hydraulic Motor

Cycloid hydraulic motor will be carefully packed in a cardboard box and palletized to ensure safety during shipping. We use standard export packing for overseas shipment. To ensure safe delivery, we use shock-resistant cardboard box to pack the motor, with additional cushioning material in the box to avoid any damage in transit.

The palletized and packed motor will be loaded onto a sea-worthy container or truck for delivery. If necessary, special packaging or transport arrangements can be made according to the customer's requirements.
