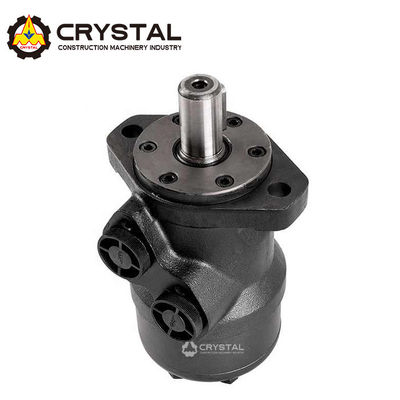

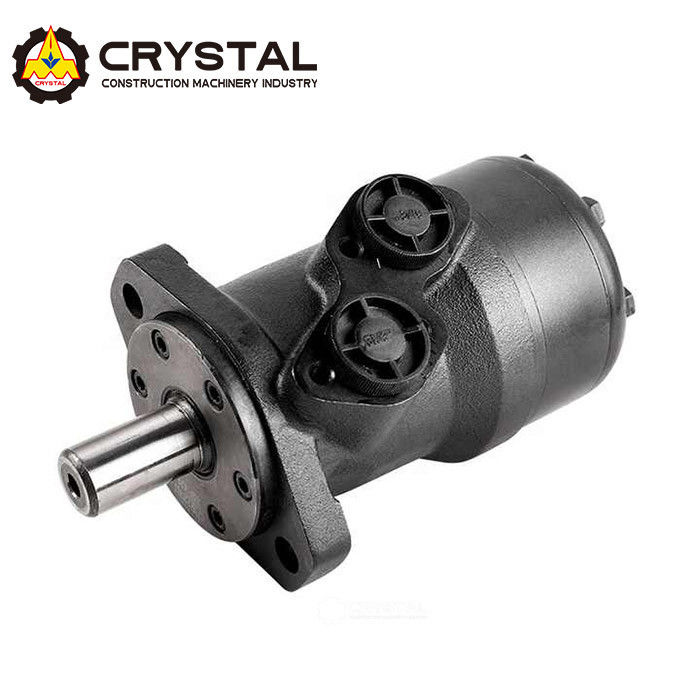

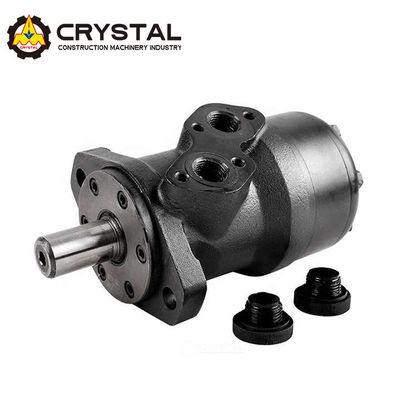

151-0246 OMR 315 Cycloid Hydraulic Motor Compact High Torque Orbital Motor

151-0246 OMR 315 Cycloid Hydraulic Motor Compact High Torque Orbital Motor

Product Details:

Place of Origin: guangzhou
Brand Name: crystal
Certification: ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS
Model Number: OMR315

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden box
Delivery Time: 5-10 days
Payment Terms: TT L/C
Supply Ability: 1000 sets
Get Best Price Contact Now

Detail Information

Product Name: Cycloid Hydraulic Motor Max. Speed: 1500r/min
Rated Torque: 1000N.m Displacement Range: 25-400ml/r
Max. Displacement: 400ml/r Pressure Range: 2.5-20MPa
Weight: 10kg Max. Torque: 1000N.m
High Light:

OMR 315 Cycloid Hydraulic Motor

,

Cycloid Hydraulic Motor Compact

,

OMR 315 Hydraulic Motor

Product Description

OMR315 151-0246 Hydraulic Cycloidal Motors BMR 315 High Torque Orbital Motor

Product Description:

OMR series motor adapt the advanced Geroler gear set design with shaft distribution flow, which can automatically compensate in operating with high pressure, provide reliable and smooth operation, high efficiency and long life.


Features:

1.Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency. 2.Shaft seal can bear high pressure of back and the motor can be used in parallel or in series. 3.Special design in the driver-linker and prolong operating life. 4.Special design for distribution system can meet the requirement of low noise of unit. 5.Compact volume and easy installation.

Technical Parameters:

OMR/OMRS series:
Type
36/50
80/100
125/160
200
250
315
375
Geometric displacement(cm²/rev.)
36/51.7
81.5/102
127.2/157.2
194.5
253.5
317.5
381.4
Max.speed(rpm)
cont.
1250/960
750/600
475/378
310
240
190
155
int.
1520/1150
940/750
600/475
385
300
240
190
Max.torque
(N*m)
cont.
72/100
195/240
300/360
360
390
390
365
int.
83/126
220/280
340/430
440
490
535
495
Max.output (kw)
cont.
8.5/9.5
12.5/13
12.5
10
7
6
5
int.
9.8/11.2
15
14.5/14
13
9.5
9
8
Max.pressure drop (MPa)
cont.
14
17.5
17.5/16.5
13
11
9
7
int.
16.5/17.5
20
20
17.5
15
13
10
Max.flow
(L/min)
cont.
45/50
60
60
60
60
60
60
int.
55/60
75
75
75
75
75
75
Weight(kg)
6.5/6.7
6.9/7
7.3/7.6
8
8.5
9
9.5





Applications:

Crystal hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery, especially fitted to lower load applications, such as plastic injection mold machine, cleaner, grass cutter,Winches, Conveyors, Slews, Sweeper Drives, Augers, Cutters, Mowers and Chippers.



Customization:

Customized Cycloid Hydraulic Motor with ISO9001/EN ISO 12100/OHSAS 18001/SGS Certification

Brand Name: Crystal
Place of Origin: Guangzhou
Certification: ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-10 days
Payment Terms: TT L/C
Supply Ability: 1000 Sets
Rated Displacement: 400ml/r
Rated Speed: 1500r/min
Max. Torque: 1000N.m
Max. Pressure: 20MPa
Weight: 20kg
Keywords: Aerial work vehicle, Aerial work vehicle, Aerial work vehicle



Support and Services:

Technical Support & Service for Cycloid Hydraulic Motor

We offer comprehensive technical support and service for Cycloid Hydraulic Motors. Our team of experienced engineers is available to provide detailed technical advice on the use and maintenance of these motors.

Technical support is available by phone, email, or online chat. We are also able to provide on-site technical assistance if required. Our engineers are up to date with the latest developments in the industry and can provide expert guidance and advice on the best way to use and maintain your Cycloid Hydraulic Motor.

We offer a range of spare parts and accessories to ensure that your motor is always running at its best. Our team is also available to provide routine maintenance and repair services if needed.

We value our customer relationships and are committed to providing the highest quality technical support and service for Cycloid Hydraulic Motors.



Packing and Shipping:

Packaging and Shipping for Cycloid Hydraulic Motor

The Cycloid Hydraulic Motor is packed in a box with product manual and all accessories. The box is made of corrugated cardboard and is designed to protect the product from damage during transportation.

The shipping of Cycloid Hydraulic Motor is done by air or sea. The shipping cost will depend on the weight and size of the package, as well as the distance of the destination. We will provide the best shipping rate and delivery time according to customer needs.
