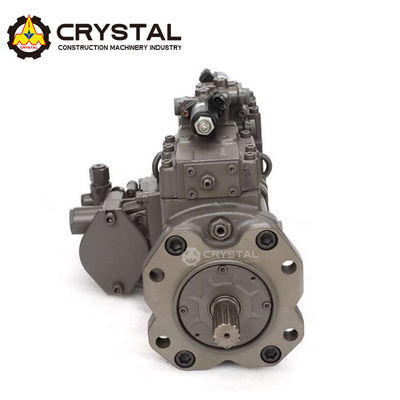

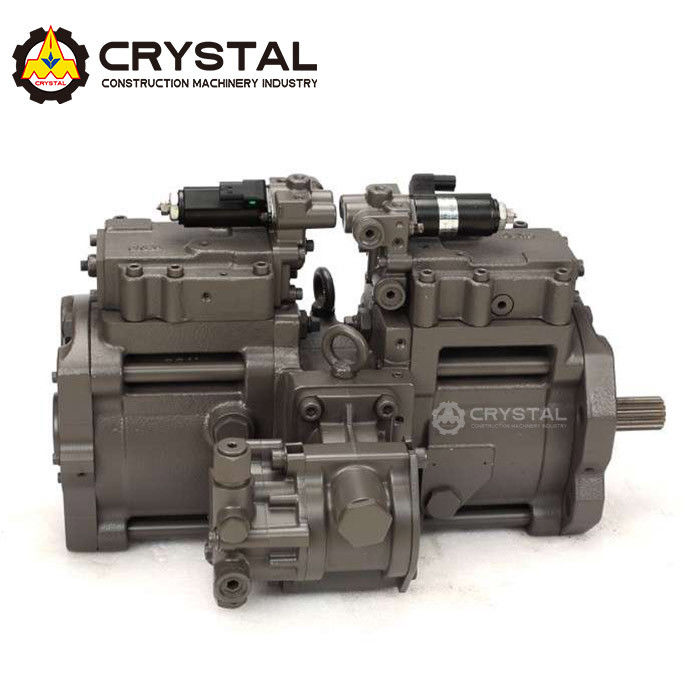

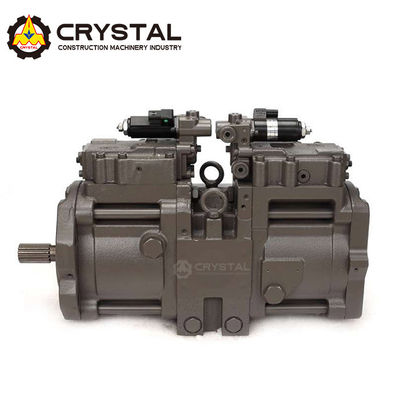

Excavator Hydraulic Pump Kobelco SK135SR Plunger pump piston PUMP

Excavator Hydraulic Pump Kobelco SK135SR Plunger pump piston PUMP

Product Details:

Place of Origin: QingDao
Brand Name: Crystal
Certification: ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS
Model Number: K3V63DTP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sets
Price: Reconsideration
Packaging Details: Wood case
Delivery Time: 3-5days
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/month
Get Best Price Contact Now

Detail Information

Product Name: Excavator Hydraulic Pump Brand Name: Crystal
Application: Excavator Machine Model: SK135SR
Warranty: 1 Year Delivery Time: Within 3 Working Days
Package: Wooden Box

Product Description


Product Description

Product name

K3V63DTP Excavator hydraulic pump

Applicable model


Chinese brand, crystal
New, We produce ourselves
Displacement 63
Rated Pressure (MPa) 34.3
Maximum Pressure (MPa) 34.3
Rated Speed (rpm) 2500
Maximum Speed (rpm) 3000
Minimum Speed (rpm) 600
Oil Temperature Range (℃) -20 ~ +80
Hydraulic Oil Viscosity Range (mm²/s) 10 ~ 75
Maximum Flow Rate (l/min) 295
Input Power (kW) 63.1
Output Power (kW) 47.1
Efficiency (%) ≥ 85
Drive Mode Hydraulic Drive
Hydraulic drive systems for excavators, loaders, and other  machinery
Direction of turning Right-handed rotation
Net Weight 36KG
Payment term
TT bank transfer, Western Union,L/C
Warranty time
12 months
Delivery time
Have in stock, within 3-5 days to ship out it


Product application range

As the core component of excavator hydraulic system, excavator hydraulic pump has been widely used in many fields of construction machinery due to its excellent performance and flexibility. Whether it is in civil engineering, mining, port, agriculture, forestry, urban construction and other fields, excavator hydraulic pump is the only choice to unlock powerful power.

Civil Engineering and construction:
Excavator hydraulic pumps are an indispensable power source in the field of civil engineering and construction. It plays a key role in earthwork excavation, foundation construction, road construction and other work, providing efficient and stable power support for the project.

Mining and Quarrying:
In mines and quarries, hydraulic pumps for excavators are essential equipment. It is used for mining ore, quarrying and loading and transportation, and its strong working capacity and stability improve the efficiency of ore mining.

Ports and Shipping:
Excavator hydraulic pumps also play an important role in the port and shipping industry. It is used for tasks such as dock loading and unloading operations, river dredging and ship maintenance, ensuring the normal operation of the port and shipping industry.

Agriculture and Forestry:
Hydraulic pumps for excavators are widely used in agriculture and forestry. It is used for land consolidation, drainage system construction and forestry resources collection and management, providing a strong power for the modernization and intelligent development of agriculture and forestry.

Urban Environment and Municipal Engineering:
In urban environmental transformation and municipal engineering, excavator hydraulic pumps are widely used in road maintenance, drainage system construction and garbage disposal. It brings efficient power output and provides a strong guarantee for the improvement of urban environment and the quality of life of citizens.

Energy and Environmental Protection:
Excavator hydraulic pumps also play a key role in the field of energy and environmental protection. It is used in oilfield development, wind farm infrastructure construction and environmental protection projects, contributing to the development of the energy industry and environmental protection.

The wide applicability of excavator hydraulic pump makes it an important part of multi-field construction machinery. It not only provides a strong power for the excavator, but also brings efficient and stable work performance. In all walks of life, our excavator hydraulic pump with its excellent performance and flexible adaptability, has injected a strong power for the construction machinery industry, and achieved unlimited possibilities for future development!


Product features and advantages

As the core component of excavator hydraulic system, our products integrate innovative technology and high-quality materials to empower the construction machinery industry with excellent performance and help your project achieve more efficient and stable power output.

1. Advanced technology, efficient output:

Our excavator hydraulic pumps use advanced hydraulic technology and fluid dynamics optimization to ensure strong power for excavators under conditions of high flow output and high pressure stability. Its high energy consumption balance ensures efficient operation under various working conditions and improves engineering efficiency.

2. Stable and reliable, excellent durability:

We pay attention to the quality and stability of products, in the design and manufacturing process of excavator hydraulic pump, the use of high-quality materials and exquisite technology to ensure that it can operate stably and reliably under high pressure, high temperature and harsh environment. Its durability is excellent, reducing the frequency of equipment failure and maintenance, and extending the service life.

3. Intelligent control, safety guarantee:

Our hydraulic pumps are equipped with intelligent management system to monitor the working status and parameters of hydraulic pumps in real time. With intelligent control, you can detect potential problems in time and make adjustments accordingly, improving device reliability and security and ensuring operator safety.

4. Multi-field adaptation, widely used:

Our hydraulic pumps are suitable for a wide range of excavator models and application scenarios and can be customized according to customer needs. Whether it is civil engineering, mining, port terminals, agriculture, forestry, urban construction and other fields, our hydraulic pumps can respond flexibly, showing excellent adaptability and reliability.

5. Energy saving and environmental protection, green development:

We are committed to the concept of energy saving and environmental protection, and the energy-saving design and efficient output of the excavator hydraulic pump reduce energy consumption and emissions. Our products meet environmental protection standards and contribute to green development.

Choose our excavator hydraulic pump, you will have efficient output, stable and reliable, intelligent and safe products, help your project to achieve more efficient and reliable power output. We look forward to working with you to create a new era of construction machinery industry and create a better future!


Hydraulic pump operation manual


Thank you for choosing our excavator hydraulic pump products. This operation manual will provide you with detailed instructions and maintenance guides to help you fully understand and correctly operate the excavator hydraulic pump to ensure that it provides powerful power for your excavator efficiently and stably.

Product Overview:
Excavator hydraulic pump is the core component of excavator hydraulic system, which is used to transport hydraulic oil and provide power for hydraulic components. It has the characteristics of high flow output and high pressure stability, and is suitable for various excavator models and application scenarios.

Safety Information:
Before operating the hydraulic pump of the excavator, be sure to carefully read and follow the following safety instructions:

Before operation, ensure that the excavator is in a stable shutdown state and cut off the power source.
It is strictly prohibited to open the cover plate of the hydraulic pump or remove key components during operation.
When maintaining and maintaining hydraulic pumps, relevant safety procedures and operating regulations must be observed.
Operation steps:
Follow these steps to properly operate the excavator hydraulic pump:

Step 1: Ensure that the hydraulic pump and excavator are shut down and cut off the power source.

Step 2: Check the liquid level of the hydraulic pump to ensure that the hydraulic oil is within the appropriate mark line range.

Step 3: Start the power source of the excavator, slowly increase the speed of the hydraulic pump, so that it reaches the normal working state.

Step 4: According to the actual work needs, adjust the output flow and pressure of the hydraulic pump to ensure that it meets the work requirements.

Step 5: During the work of the excavator, pay attention to monitoring the operating status of the hydraulic pump, and stop the machine in time for inspection if there is an anomaly.

In order to ensure the normal operation of the hydraulic pump of the excavator, regular maintenance is very important. Here are some suggestions:

Check the liquid level of the hydraulic pump every day, and add hydraulic oil in time.
Replace the hydraulic oil regularly and clean the tank and filter.
Check the seals and connecting parts of the hydraulic pump to ensure that there is no oil leakage.
Check the operating status and pressure of the hydraulic pump regularly, and deal with any anomalies in time.
During use, if the hydraulic pump is abnormal, you can preliminarily eliminate it according to the following methods:

If the hydraulic pump oil leakage is found, check whether the seal is damaged and replace it in time.
If the hydraulic pump appears noise or vibration, check whether the pump body and connecting parts are loose.
If the output flow of the hydraulic pump is unstable, check whether there is blockage or pump body damage.
If you can not solve the problem, please contact our after-sales service team in time, we will provide you with professional technical support.


Technological advantage

Excavator Hydraulic Pump Kobelco SK135SR Plunger pump piston PUMP 0


In the field of engineering, excavator hydraulic pump is an indispensable key component, which plays a crucial role in the performance and efficiency of excavator. And we are proud of the excavator hydraulic pump, not only in quality excellence, but also with innovation to lead the trend, to bring you a compelling experience!

Perfect integration, efficient performance
Our excavator hydraulic pumps are carefully designed and optimized to blend perfectly with all excavator models. Its efficient performance enables your excavator to maximize its potential in a wide range of work scenarios and easily meet diverse construction challenges.
Intelligent control, intelligent control
Leading the development of intelligent hydraulic pumps, our products are equipped with advanced intelligent control systems. With intelligent control, you can monitor the working status of the excavator in real time and automatically adjust the output of the pump as needed, thereby improving construction efficiency and reducing energy consumption.
Lightweight design, flexible application
We pay attention to the light design of the product, reduce the weight of the pump, so that the excavator operation is more flexible. Whether it is a small working space or difficult terrain, our hydraulic pumps can help you complete construction tasks quickly, so that you can do more with less.
Rigorous testing, stable and reliable
In the production process, we carry out strict testing and quality inspection of the hydraulic pump to ensure its stability and reliability. You can rely on our products to deliver lasting and consistent performance under any conditions.
Customer first, personalized customization
We regard customer needs as our top priority and focus on communication and cooperation with customers. We offer customized solutions to help you stand out in the engineering field by creating the most suitable hydraulic pump for your excavator model and engineering requirements.
Excavator hydraulic pump, excellent quality, innovation leading. Choose us to give your excavator a new lease of life for a more efficient and smoother engineering experience!



Excavator Hydraulic Pump Kobelco SK135SR Plunger pump piston PUMP 1

Our products are in line with international standards and have obtained the Chinese quality trust unit


More products Show

Excavator Hydraulic Pump Kobelco SK135SR Plunger pump piston PUMP 2

If you have more needs, we can also provide you with customized services, our products are under continuous development to ensure the continuous needs of customers.


Our Services

Dear Customer,

Thank you for your interest and trust in our hydraulic walking device products and services. We are a company specializing in the production of high-quality hydraulic walking devices and have accumulated years of experience and technical expertise in this field. Our products are not only reliable in quality, but also perform well in terms of performance, safety and durability.

Our service concept is customer-centric, with the goal of meeting customer needs, adhering to the service philosophy of "integrity, professionalism, efficiency, and innovation", and always maintaining communication and exchange with customers to ensure customer satisfaction and trust. Our team is composed of experienced, skilled, and enthusiastic professionals who provide customers with comprehensive service support, including:

1. Customization of products: We can provide customers with customized hydraulic walking device products tailored to their needs and requirements to ensure that the products meet the customer's usage and environmental requirements.

2. Technical support: We have a professional technical team that can provide customers with technical support for product selection, installation and commissioning, maintenance and other aspects to ensure that customers can use our products smoothly.

3. After-sales service: We provide 7x24-hour after-sales service to ensure that customers can get timely solutions to any problems encountered during use.

Our products have been exported to overseas markets and have won unanimous praise from customers. We believe that through our professional technology and high-quality services, we can become your trusted long-term partner.

If you have any needs or questions about our products and services, please feel free to contact us. We will provide you with the best service and support and look forward to working with you!


Contact us


Whatsapp:8619554163292 8615805343909



1, Q: Are you a manufacturer or a trading company? A: We are a manufacturer of quality final drives located in Qingdao National High-Tech Industrial Development Zone with 14 years of production experience .

2. Q: What is your company size ?
A: Ours factory covers an area of 70,000 square meters with 120 employees . Turnover of 2019 is 20 million USD .

3, Q: What certificate do you have? A: ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS

4, Q: How long is your delivery time? A: We keep stock for conventional products . New orders to produce takes about 20 days. Customized products takes about 40 days .

5, Q: What kind of payment terms do you accept? A: T.T. / DP at sight / LC .

6, Q: What is your warranty policy?
A: All our products are warranted for one full year from date of delivery against defects in materials and workmanship.
