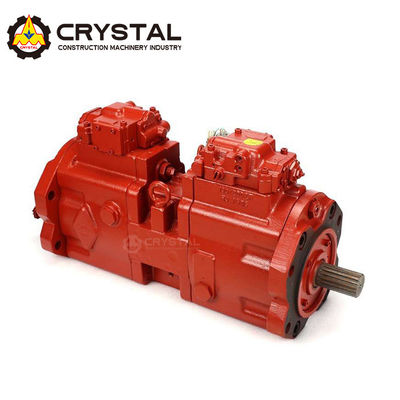

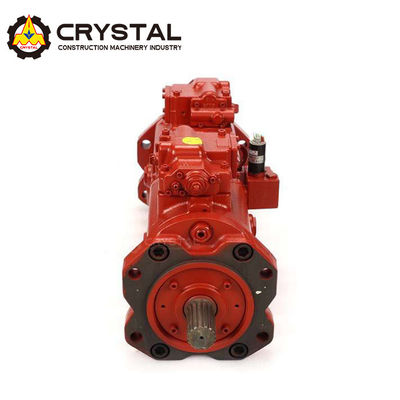

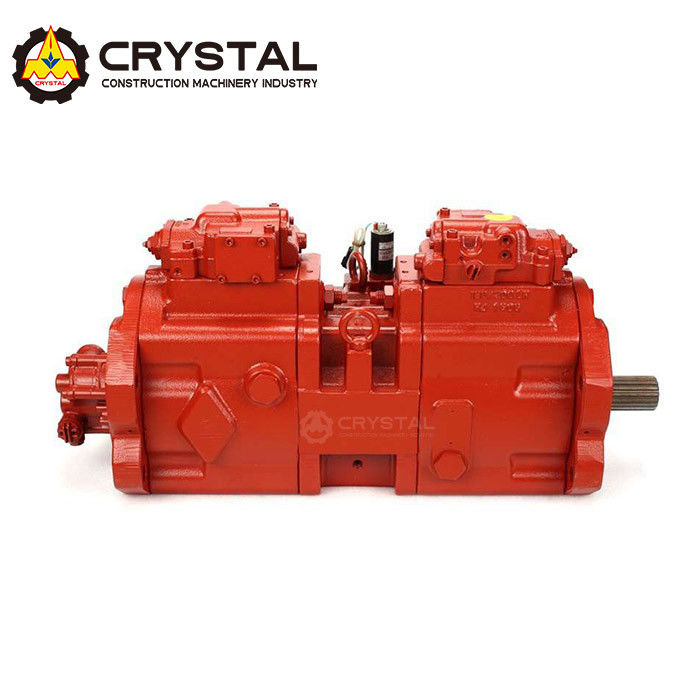

K3V112DTP Customized Hydraulic Pump Parts R210 EC210 EC240 Plunger Pump

K3V112DTP Customized Hydraulic Pump Parts R210 EC210 EC240 Plunger Pump

Product Details:

Place of Origin: QingDao
Brand Name: Crystal
Certification: ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS
Model Number: K3V112DT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sets
Price: Reconsideration
Packaging Details: Wood case
Delivery Time: 3-5days
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/month
Get Best Price Contact Now

Detail Information

Product Name: Excavator Hydraulic Pump Brand Name: Crystal
Application: Excavator Machine Model: K3V112DTP
Warranty: 1 Year Delivery Time: Within 3 Working Days
Package: Wooden Box
Highlight:

Hydraulic Pump Parts R210

,

Hydraulic Pump Parts EC210

,

Customized Hydraulic Pump EC240

Product Description



K3V112DTP Excavator Hydraulic Pump Hyundai R210 volvo EC210/240 Plunger pump



Product Description


Product name

K3V112DTP Excavator hydraulic pump

Applicable model

EC210/240 R20 liugong920 sk200

Brand
Chinese brand, crystal
Condition
New, We produce ourselves
Displacement 112
Rated Pressure (MPa) 34.3
Maximum Pressure (MPa) 39.2
Rated Speed (rpm) 2600
Maximum Speed (rpm) 2900
Minimum Speed (rpm) 600
Oil Temperature Range (℃) -20 ~ +80
Hydraulic Oil Viscosity Range (mm²/s) 10 ~ 75
Maximum Flow Rate (l/min) 295
Input Power (kW) 61.2
Output Power (kW) 47.1
Efficiency (%) ≥ 85
Gear Pump Type Dual Axial Piston Swash Plate Gear Pump
Drive Mode Hydraulic Drive
Application
Hydraulic drive systems for excavators, loaders, and other  machinery
Direction of turning Right-handed rotation
Net Weight 105KG
Payment term
TT bank transfer, Western Union,L/C
Warranty time
12 months
Delivery time
Have in stock, within 3-5 days to ship out it



Composition and principle of hydraulic pump


Hydraulic pump is an important hydraulic system component in construction machinery such as excavators, and its working principle is as follows:

Hydraulic pump input: The input end of the hydraulic pump is connected to the oil supply source of the hydraulic system, usually a hydraulic tank. The hydraulic pump draws hydraulic oil from the tank.
Oil suction port: The oil suction port of the hydraulic pump is located at the input end of the hydraulic pump and is used to draw hydraulic oil from the hydraulic tank.
Oil filter: The oil filter is usually set at the oil suction port to filter impurities and pollutants in the hydraulic oil to protect the normal operation of the hydraulic pump and hydraulic system.
Pump shaft and plunger: The hydraulic pump is provided with a pump shaft and plunger, and the rotation of the pump shaft will drive the plunger to produce reciprocating motion.
High pressure chamber and low pressure chamber: The plunger switches two chambers inside the hydraulic pump, one is a high pressure chamber and the other is a low pressure chamber.
Oil outlet: There is an oil outlet between the high pressure chamber and the low pressure chamber, which is used to control the flow direction of hydraulic oil.
Reversing valve: According to the working state of the hydraulic pump, the reversing valve controls the opening and closing of the oil outlet between the high pressure chamber and the low pressure chamber to achieve the forward and reverse of the hydraulic pump.
Hydraulic pump output end: The output end of the hydraulic pump is connected to the hydraulic cylinder or hydraulic motor of the hydraulic system through the pipeline.
Hydraulic motor: When the hydraulic oil output by the hydraulic pump enters the hydraulic motor, the hydraulic motor begins to work, converting the hydraulic energy into mechanical energy, and pushing the construction machinery such as excavators to walk or perform other actions.
The above is the basic working principle of K3V112 hydraulic pump. The hydraulic pump converts hydraulic energy into mechanical energy through continuous circulation to absorb and discharge hydraulic oil, providing powerful power support for construction machinery.



Product  advantages




Excavator K3V112DT hydraulic pump is the key component of excavator walking system, and its performance advantage directly affects the performance of excavator in engineering construction. With advanced technology and excellent design, the K3V112DT hydraulic pump has become an indispensable force in the excavator walking system, leading the development of construction machinery.

1.high-performance hydraulic system:

K3V112DT hydraulic pump with high performance hydraulic system, equipped with advanced hydraulic control technology. This allows the hydraulic pump to achieve precise control of flow and pressure while working, ensuring excellent stability and flexibility of the excavator walking system. The high-performance hydraulic system provides powerful power support, enabling the excavator to perform well in a variety of engineering environments.

2. High efficiency and energy saving design:

K3V112DT hydraulic pump pays attention to high efficiency and energy saving in design. By optimizing the structural design of the gear and bearing, the internal leakage and friction loss are reduced, and the efficiency of the hydraulic pump is improved. Energy-efficient design not only reduces energy consumption, reduces operating costs, but also meets environmental requirements and contributes to sustainable development.

3. stable and reliable performance:

K3V112DT hydraulic pump through strict quality inspection and testing, the use of high-strength materials and high-quality manufacturing process, to ensure its stable and reliable performance. In a complex engineering environment, the hydraulic pump can continue to operate and is not prone to failure, providing stable support for the efficient work of the excavator.

4.intelligent control system:

Excavator K3V112DT hydraulic pump is equipped with intelligent control system to realize intelligent regulation and monitoring of hydraulic pump. The intelligent control system can automatically adjust the output flow and pressure according to different working conditions, providing more accurate walking control. Intelligent control makes the excavator more intelligent and efficient in the operation process.

5. Wide applicability:

K3V112DT hydraulic pump is widely used in all kinds of excavators and construction machinery, such as excavators, loaders and so on. Its excellent performance and stable reliability make the excavator can be flexibly used in all kinds of engineering projects and competent for a variety of work tasks.

The product advantages of excavator K3V112DT hydraulic pump highlight its important position in engineering construction. High performance hydraulic system, energy efficient design, stable and reliable performance, intelligent control system and wide applicability make K3V112DT hydraulic pump a leader in the field of construction machinery.



Product application range


First, intelligent technology:

Adaptive control: The future excavator hydraulic pump will be further intelligent and adopt adaptive control technology. It can adjust the output in real time according to the working condition and load of the excavator to provide more accurate hydraulic control and optimize the use of energy.
Autonomous operation: With the development of artificial intelligence technology, excavator hydraulic pumps may realize autonomous operation, sense the surrounding environment in real time through sensors and algorithms, and automatically complete work according to task requirements, improving work efficiency and safety.
Second, environmental protection and sustainable development:

Electric hydraulic pump: There may be more electric hydraulic pump technology in the future to reduce the carbon emissions and noise pollution of excavators. The electric hydraulic pump can use clean energy to drive and improve the environmental performance of the excavator.
Biohydraulic oil: Biohydraulic oil is a renewable hydraulic oil that can replace traditional mineral oil and reduce its environmental impact. Future excavator hydraulic pumps may use bio-hydraulic oil to achieve more environmentally friendly engineering construction.
Iii. Expansion of emerging areas:

Aerospace: The high performance and stability of hydraulic pumps for excavators may find new applications in the aerospace sector. It can be used in aircraft landing gear, flight control systems, etc., to improve aircraft performance and safety.
Marine engineering: The future excavator hydraulic pump may be extended to the field of Marine engineering, for seabed resource development, deep-sea exploration and other tasks, to help Marine science and resource utilization.



Technological advantage


K3V112DTP Customized Hydraulic Pump Parts R210 EC210 EC240 Plunger Pump 0



In the field of engineering, excavator hydraulic pump is an indispensable key component, which plays a crucial role in the performance and efficiency of excavator. And we are proud of the excavator hydraulic pump, not only in quality excellence, but also with innovation to lead the trend, to bring you a compelling experience!

Perfect integration, efficient performance
Our excavator hydraulic pumps are carefully designed and optimized to blend perfectly with all excavator models. Its efficient performance enables your excavator to maximize its potential in a wide range of work scenarios and easily meet diverse construction challenges.
Intelligent control, intelligent control
Leading the development of intelligent hydraulic pumps, our products are equipped with advanced intelligent control systems. With intelligent control, you can monitor the working status of the excavator in real time and automatically adjust the output of the pump as needed, thereby improving construction efficiency and reducing energy consumption.
Lightweight design, flexible application
We pay attention to the light design of the product, reduce the weight of the pump, so that the excavator operation is more flexible. Whether it is a small working space or difficult terrain, our hydraulic pumps can help you complete construction tasks quickly, so that you can do more with less.
Rigorous testing, stable and reliable
In the production process, we carry out strict testing and quality inspection of the hydraulic pump to ensure its stability and reliability. You can rely on our products to deliver lasting and consistent performance under any conditions.
Customer first, personalized customization
We regard customer needs as our top priority and focus on communication and cooperation with customers. We offer customized solutions to help you stand out in the engineering field by creating the most suitable hydraulic pump for your excavator model and engineering requirements.
Excavator hydraulic pump, excellent quality, innovation leading. Choose us to give your excavator a new lease of life for a more efficient and smoother engineering experience!



certificate


K3V112DTP Customized Hydraulic Pump Parts R210 EC210 EC240 Plunger Pump 1

Our products are in line with international standards and have obtained the Chinese quality trust unit



More products Show


K3V112DTP Customized Hydraulic Pump Parts R210 EC210 EC240 Plunger Pump 2K3V112DTP Customized Hydraulic Pump Parts R210 EC210 EC240 Plunger Pump 3

If you have more needs, we can also provide you with customized services, our products are under continuous development to ensure the continuous needs of customers.



Our Services


Dear Customer,

Thank you for your interest and trust in our hydraulic walking device products and services. We are a company specializing in the production of high-quality hydraulic walking devices and have accumulated years of experience and technical expertise in this field. Our products are not only reliable in quality, but also perform well in terms of performance, safety and durability.

Our service concept is customer-centric, with the goal of meeting customer needs, adhering to the service philosophy of "integrity, professionalism, efficiency, and innovation", and always maintaining communication and exchange with customers to ensure customer satisfaction and trust. Our team is composed of experienced, skilled, and enthusiastic professionals who provide customers with comprehensive service support, including:

1. Customization of products: We can provide customers with customized hydraulic walking device products tailored to their needs and requirements to ensure that the products meet the customer's usage and environmental requirements.

2. Technical support: We have a professional technical team that can provide customers with technical support for product selection, installation and commissioning, maintenance and other aspects to ensure that customers can use our products smoothly.

3. After-sales service: We provide 7x24-hour after-sales service to ensure that customers can get timely solutions to any problems encountered during use.

Our products have been exported to overseas markets and have won unanimous praise from customers. We believe that through our professional technology and high-quality services, we can become your trusted long-term partner.

If you have any needs or questions about our products and services, please feel free to contact us. We will provide you with the best service and support and look forward to working with you!



Contact us


EMAIL:Bing83125@gmail.com

Whatsapp:8619554163292 8615805343909



FAQ


1, Q: Are you a manufacturer or a trading company? A: We are a manufacturer of quality final drives located in Qingdao National High-Tech Industrial Development Zone with 14 years of production experience .

2. Q: What is your company size ?
A: Ours factory covers an area of 70,000 square meters with 120 employees . Turnover of 2019 is 20 million USD .

3, Q: What certificate do you have? A: ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS

4, Q: How long is your delivery time? A: We keep stock for conventional products . New orders to produce takes about 20 days. Customized products takes about 40 days .

5, Q: What kind of payment terms do you accept? A: T.T. / DP at sight / LC .

6, Q: What is your warranty policy?
A: All our products are warranted for one full year from date of delivery against defects in materials and workmanship.
