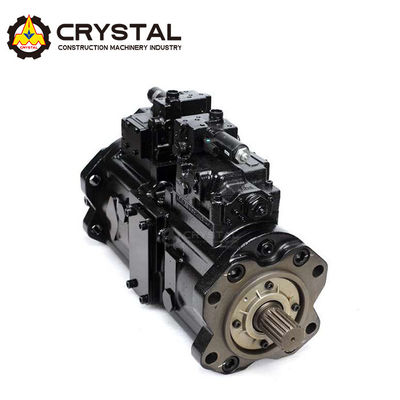

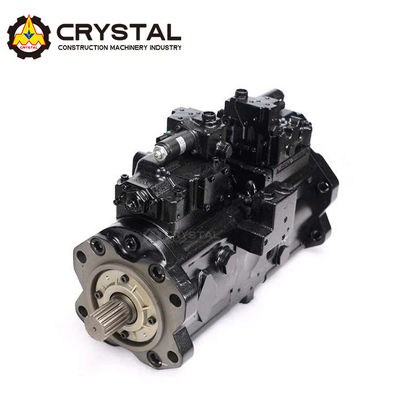

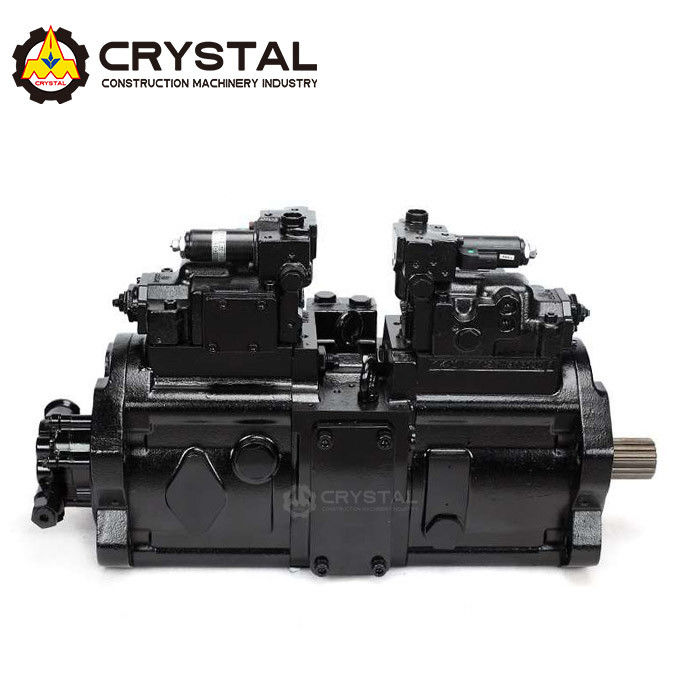

Excavator Hydraulic Pump Kobelco SK350-8 Hydraulic piston pump plunger pump

Excavator Hydraulic Pump Kobelco SK350-8 Hydraulic piston pump plunger pump

Product Details:

Place of Origin: QingDao
Brand Name: Crystal
Certification: ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS
Model Number: SK350-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sets
Price: Reconsideration
Packaging Details: Wood case
Delivery Time: 3-5days
Payment Terms: L/C, T/T
Supply Ability: 1000 Sets/month
Get Best Price Contact Now

Detail Information

Product Name: Excavator Hydraulic Pump Brand Name: Crystal
Application: Excavator Machine Model: SK350-8
Warranty: 1 Year Delivery Time: Within 3 Working Days
Package: Wooden Box

Product Description


Product Description

Product name

K3V180DT Excavator hydraulic pump

Applicable model


Chinese brand, crystal
New, We produce ourselves
Displacement 180
Rated Pressure (MPa) 35.3
Maximum Pressure (MPa) 39.2
Rated Speed (rpm) 2500
Maximum Speed (rpm) 2800
Minimum Speed (rpm) 900
Oil Temperature Range (℃) -20 ~ +80
Hydraulic Oil Viscosity Range (mm²/s) 10 ~ 75
Maximum Flow Rate (l/min) 450
Input Power (kW) 109
Output Power (kW) 86.6
Efficiency (%) ≥ 85
Gear Pump Type Dual Axial Piston Swash Plate Gear Pump
Drive Mode Hydraulic Drive
Hydraulic drive systems for excavators, loaders, and other  machinery
Direction of turning Right-handed rotation
Net Weight 180KG
Payment term
TT bank transfer, Western Union,L/C
Warranty time
12 months
Delivery time
Have in stock, within 3-5 days to ship out it


Product features and advantages

Excavator is an important representative in the field of construction machinery, and its stable and efficient hydraulic system is the key to ensure the smooth progress of work. As the core component of the hydraulic system, the hydraulic pump of the excavator plays an important role in transporting hydraulic oil and providing power for various hydraulic components. In this challenging working environment, we are proud to introduce high quality excavator hydraulic pumps with outstanding product features and numerous benefits to help excavators achieve strong performance.

Product features:

Energy efficient design: Our excavator hydraulic pumps use advanced energy saving technology to optimize the internal structure and fluid dynamic design of the pump to minimize energy loss and improve energy efficiency. In long hours, it will save you a lot of fuel costs and reduce operating costs.
Reliable performance and durability: We pay attention to every detail, carefully select wear-resistant materials, the use of precision processing technology, to ensure that the hydraulic pump in high pressure, high temperature and other harsh conditions are still stable operation. Superior durability means less maintenance downtime, ensuring that your excavator continues to work efficiently.
Intelligent control system: The hydraulic pump is equipped with an intelligent control system, which can monitor the operating status and working parameters of the hydraulic pump in real time. With intelligent management, you can discover and resolve potential problems in a timely manner, improving device reliability and security.

Excellent performance: Our excavator hydraulic pumps provide high flow rates and high pressure outputs to ensure excellent performance in all conditions. It provides powerful propulsion and operation capability for excavators, allowing you to get twice the result with half the effort in engineering construction.
Smooth and low noise: high-quality hydraulic pump design and manufacture make it run smoothly, reduce the noise pollution of the hydraulic system, and provide you with a more comfortable and quiet working environment.
Adaptable: Our hydraulic pumps can be customized according to different excavator models and application requirements to meet the requirements of various engineering projects. Whether it is a small excavator or a large excavator, we can provide the most suitable hydraulic pump solution.
Quality assurance: We adhere to a strict quality control process, all hydraulic pump products are strictly tested and inspected to ensure that products meet high standards and reliability.
In the choice of excavator hydraulic pump, high-quality products will bring twice the result with half the effort for your construction machinery. Our hydraulic pump products are characterized by high efficiency and stability, excellent quality and excellent service, providing you with strong working power and lasting performance guarantee. Let's work together to create a better future!

Product application range

As the core component of excavator, excavator hydraulic pump has been widely used in the field of construction machinery due to its powerful power and high efficiency and stability. However, its application is not limited to the civil engineering and construction industry. With the continuous development and innovation of technology, the application scenarios of excavator hydraulic pumps continue to expand, covering a number of fields, and bringing new power solutions to all walks of life.

Civil engineering and construction: In the field of construction and civil engineering, excavator hydraulic pumps are widely used in earthwork excavation, foundation construction, road laying and other work. Its high head and high pressure output make the excavator easily handle a variety of soil and engineering scenarios, improve construction efficiency and reduce labor costs.
Mining and quarrying: In mines and quarries, excavator hydraulic pumps become the main equipment for mining, quarrying and loading and transportation. Its strong working ability and durability make it perform well in harsh working environment and improve the mining efficiency of ore.
Port and shipping industry: Excavator hydraulic pumps are widely used in the port and shipping industry for tasks such as dock loading and unloading operations, river dredging and ship maintenance. Its high head output and reliability make it a right hand to the shipping industry.
Agriculture and forestry: In the field of agriculture and forestry, excavator hydraulic pumps are used for land consolidation, drainage system construction and forestry resource collection and management. Its flexibility and efficiency provide strong support for the modernization and intelligent development of agriculture and forestry.
Urban environment and municipal engineering: In urban environmental transformation and municipal engineering, excavator hydraulic pumps are widely used in road maintenance, drainage system construction and garbage disposal. Its efficient and stable performance helps to improve the urban environment and enhance the quality of life of citizens.
Energy and environmental protection: Excavator hydraulic pumps are used in oil field development, wind farm infrastructure construction and environmental protection projects in the field of energy and environmental protection. Its high pressure and high flow output meet the high requirements for power and control.
Other industrial fields: excavator hydraulic pumps are also widely used in various industrial fields such as metallurgy, aerospace, and water conservancy engineering. Its diverse application scenarios reflect its comprehensive strength in the field of construction machinery.

Excavator hydraulic pump with its powerful power, high efficiency and stability and a wide range of applications, has become an indispensable power source in many fields. In the process of continuous innovation and development, it continues to expand its application field, providing efficient and reliable power solutions for all walks of life.

Hydraulic pump use process

Excavator hydraulic pump is one of the core components of excavator, responsible for providing power and energy to drive various movements of the machine. The correct operation of the hydraulic pump is crucial to the performance and life of the excavator.
Step 1: Check the hydraulic fluid
Before operating the hydraulic pump, first check the oil level height and quality of the hydraulic oil. Make sure that the oil level is in the right position, and check that the oil is clean and there are no impurities. If necessary, replace or add hydraulic oil in time to ensure that it is within the specified working range.

Step two: Preheat
Start the engine of the excavator and allow it to preheat for a period of time to ensure that the temperature of the hydraulic oil gradually rises to fully lubricate and protect the normal work of the hydraulic pump.

Step 3: Operate the lever
Put the excavator operating control lever in neutral position to ensure that all hydraulic control valves are in a neutral position. This will ensure that the hydraulic pump will not be subjected to excessive load when starting, helping to extend the service life of the pump.

Step 4: Start the hydraulic pump
Slowly turn the hydraulic pump switch from "off" to "On". At this time, it is necessary to carefully observe whether the hydraulic pump is operating normally and whether there is abnormal sound or vibration. If abnormal conditions are found, the pump should be stopped immediately and the cause of the problem should be checked.

Step five: Adjust the pump working pressure
According to the actual needs, gradually adjust the working pressure of the hydraulic pump. Ensure that the working pressure of the pump is within the set range to obtain the best working performance.

Step six: Observe the hydraulic system
During the operation of the hydraulic pump, always pay attention to the working state of the hydraulic system. Ensure that the hydraulic oil is kept at the appropriate temperature and pressure, and watch for signs of oil leakage. If any abnormal situation is found, check and repair it in time.

Step 7: Stop the hydraulic pump
After the end of the excavation work, the hydraulic pump switch should be turned back from the "on" position to the "off" position to stop the pump. At the same time, put the operating lever in neutral to return the hydraulic system to neutral.

Hydraulic pump of excavator is the key working part of excavator. The operation process of hydraulic pump is related to the performance and life of excavator. Through the correct hydraulic pump operation process, the safe and efficient operation of the excavator can be ensured, while extending the service life of the hydraulic pump, reducing maintenance costs and improving work efficiency. Therefore, every staff operating the excavator should be familiar with and follow the operating procedures of the hydraulic pump, so as to achieve scientific operation and careful maintenance. This will help improve work efficiency, ensure work safety and achieve better work results.




Technological advantage

Excavator Hydraulic Pump Kobelco SK350-8 Hydraulic piston pump plunger pump 0


Excavator hydraulic pump is the core component of excavator walking system, and its performance and quality directly affect the work efficiency and safety performance of excavator. Among the many hydraulic pump manufacturers, our company stands out with technology leadership and excellent quality.
First, technology research and development team:

We have a technical research and development team composed of hydraulic technical experts, engineers and technicians. The team members are experienced and constantly follow the latest developments in the field of hydraulic technology. They are committed to R&D innovation, optimization of design, and continuous innovation to meet the diverse needs of customers.

2. Advanced technology and equipment:

We use the most advanced technology and equipment in the production of hydraulic pumps. Automated production lines and advanced processing equipment ensure the precise processing and high quality manufacturing of hydraulic pumps. The precision production process and strict quality control process ensure that every hydraulic pump meets the high standard of quality requirements.

Third, quality management system:

We have established a sound quality management system, in strict accordance with the ISO9001 international quality management system requirements for management. From raw material procurement to manufacturing, and then to the finished product, every link is strictly inspected and tested. Quality is the lifeline of our enterprise, we always put quality in the first place.

Fourth, product development and innovation:

We continue to carry out product research and development and innovation, launched to meet the market demand of new hydraulic pump products. Our technical research and development team continuously improves existing products and develops new technical solutions to improve the efficiency, stability and durability of hydraulic pumps. Our products not only meet the needs of the domestic market, but also export to all over the world, winning a wide range of international recognition.

5. Customer customized Services:

We provide customized services, according to the specific needs of customers and engineering requirements, tailor-made hydraulic pump products. Our technical team will work closely with our customers to provide professional advice and advice to ensure the best hydraulic pump solution for our customers.

As an excavator hydraulic pump manufacturer, we have won extensive market recognition and customer trust by relying on leading technology, advanced equipment, strict quality management system, product research and development innovation and customer customized services. We are always committed to providing customers with excellent quality hydraulic pump products, constantly improving product performance, and contributing our strength to the optimization and upgrading of excavator walking system. We firmly believe that through continuous innovation and the pursuit of excellence, our company will continue to maintain a leading position in the field of hydraulic pumps and make greater contributions to the development of the industry.



Excavator Hydraulic Pump Kobelco SK350-8 Hydraulic piston pump plunger pump 1

Our products are in line with international standards and have obtained the Chinese quality trust unit


More products Show

Excavator Hydraulic Pump Kobelco SK350-8 Hydraulic piston pump plunger pump 2

If you have more needs, we can also provide you with customized services, our products are under continuous development to ensure the continuous needs of customers.
