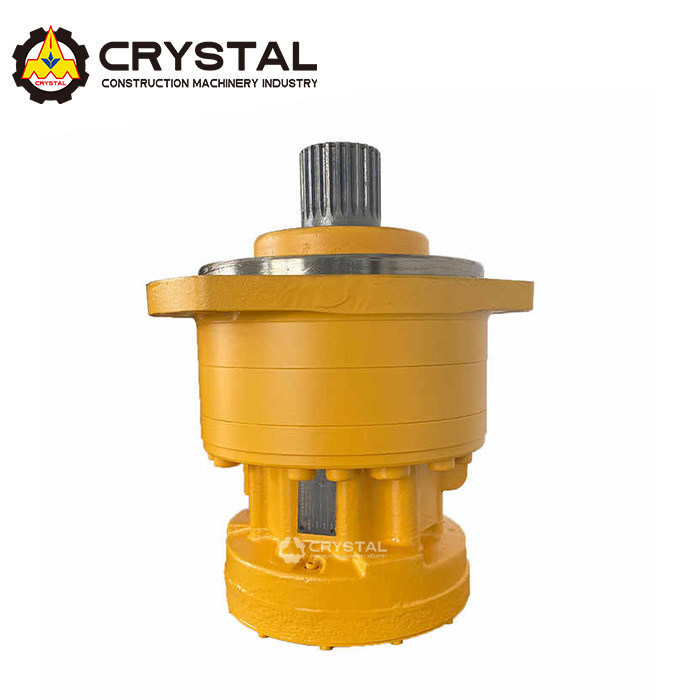

Customized Hydraulic Drive Motor Low Noise Drive Shaft Motor 220V
Product Details:
| Place of Origin: | guangzhou |
| Brand Name: | crystal |
| Certification: | ISO9001 / EN ISO 12100 / OHSAS 18001 / SGS |
| Model Number: | MS11MSE11 |
|
Detail Information |
|||
| Applicable Industries: | Construction Works , Energy & Mining, Agricultural Machinery | Efficiency: | High |
|---|---|---|---|
| Product Name: | Hydraulic Drive Motor | Operating Temperature: | 0-50°C |
| Noise Level: | Low | Warranty: | 1 Year |
| Weight: | 40kg | Shaft Type: | Splined |
| High Light: | Customized Hydraulic Drive Motor,Hydraulic Drive Motor Low Noise,Drive Shaft Motor 220V |
||
Product Description
MS11MSE11 Hydraulic Drive Shaft Motor For Marine Machinery
Product Description:
The Hydraulic Drive Motor is a track drive system that offers high efficiency for a wide range of applications. Offering 220V voltage and 25 Lbs weight, it is an ideal crawler drive motor for operating temperatures of 0-50°C. With its efficient design, the Hydraulic Drive Motor is a reliable and cost-effective solution for a variety of tasks. It is designed to handle the toughest and most demanding jobs, while delivering high performance and reliability. It is the perfect choice for those looking for a versatile and reliable hydraulic drive motor.
Features:
- Product Name : Hydraulic Drive Motor
- Material : Steel
- Operating Temperature : 0-50°C
- Shaft Type : Splined
- Weight : 25 Lbs
- Specialized for Farm Equipment Traction Motor
Technical Parameters:
| Code | HMS11 | |||||
| Displacement Group | 7 | 8 | 9 | 0 | 1 | 2 |
| Displacement(ml/r) | 730 | 837 | 943 | 1048 | 1147 | 1259 |
| Theoretical torque at 10Mpa(N.m) | 1161 | 1331 | 1499 | 1666 | 1824 | 2002 |
| Rated speed(r/min) | 125 | 125 | 125 | 100 | 100 | 80 |
| Rated pressure(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated torque(N.m) | 2400 | 2750 | 3100 | 3400 | 3750 | 4100 |
| Max.pressure(Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Max.torque(N .m) | 2950 | 3350 | 3800 | 4200 | 4650 | 5100 |
| Speed range(r/min) | 0-200 | 0-195 | 0-190 | 0-185 | 0-180 | 170 |
| Max.power(kW) | Standard displacement is 50kW,variable displacement priority rotation 33kW,no priority is 25kW |
|||||
Applications:
Crystal Hydraulic Drive Motor is a robust and reliable track drive system designed for crawler applications. It offers a 1.25-inch shaft diameter, low noise level, high efficiency, and a wide operating temperature range from 0-50°C. It is designed for heavy-duty and reliable operation, and it is suitable for a wide range of uses, such as in construction, mining, forestry, and agricultural applications. It is designed to be robust and durable, and it is capable of providing reliable performance even in the most demanding environments. The Hydraulic Drive Motor is also designed for ease of installation and maintenance, making it an ideal choice for both industrial and commercial applications.
Customization:
Crystal Hydraulic Drive Motor is a perfect choice for Farm Equipment Traction Motor and Track Drive System. This Hydraulic Drive Motor is well known for its high efficiency, IP54 protection class and steel material. It features 1.25 Inch shaft diameter and flange mounting type.
Support and Services:
At XYZ, we provide comprehensive technical support and service for our Hydraulic Drive Motor. Our dedicated team of experts can help you with any inquiries you have regarding our products. We offer a variety of services, including installation and maintenance, troubleshooting, technical training, and warranty support. We are also happy to provide custom solutions to meet your specific needs. We strive to provide the best customer service and ensure your satisfaction with our products.
Packing and Shipping:
Hydraulic drive motors are shipped in special cardboard boxes. Each box contains one motor and a set of instructions. The boxes should be taped securely and labeled with the appropriate shipping information.
The boxes should be placed on a pallet for shipping. The pallet should be secured with shrink wrap and labeled with the appropriate shipping information.
FAQ:
Q1: What is a hydraulic drive motor?
A1: A hydraulic drive motor is a motor powered by a hydraulic pump, which is used to provide rotational motion to a machine's components. The Crystal brand hydraulic drive motor, which is made in Guangzhou, is a reliable and efficient solution for driving machinery.
Q2: What are the advantages of using a hydraulic drive motor?
A2: The main advantage of using a hydraulic drive motor is that it offers greater power and torque than an electric motor of the same size. Additionally, it is generally more rugged and efficient than other types of motors.
Q3: What type of applications can a hydraulic drive motor be used for?
A3: Hydraulic drive motors can be used in a variety of applications, including in construction equipment, agricultural machinery, and industrial machinery.
Q4: How reliable are Crystal brand hydraulic drive motors?
A4: Crystal brand hydraulic drive motors are made with the highest quality materials and are rigorously tested to ensure they are reliable and efficient. They are designed to withstand high levels of pressure and heat, and to provide reliable performance for years to come.
Q5: Where can I buy Crystal brand hydraulic drive motors?
A5: Crystal brand hydraulic drive motors can be purchased from authorized distributors or from the Crystal website.
